Security Fencing
Welded security fences made in our Ipoh factory — from roll top profiles to 358 anti-climb prison mesh. Every spec below can be adjusted to your drawing.
Highest security

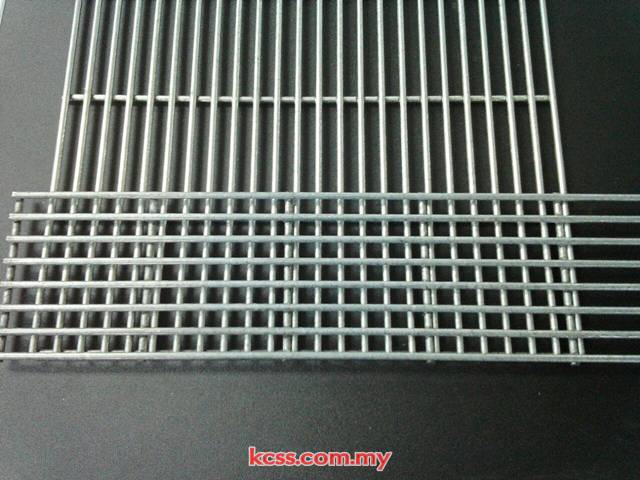

Anti-Climb Fence (358 Prison Mesh)
Also known as anti-climb & anti-cut fencing. The small apertures leave no toe or finger holds, and the heavy wire and weld joints make cutting with conventional bolt or wire cutters very difficult.
- Protects against cut-through and increases delay time
- Clear visibility — works well with CCTV
- For prisons, airports, military bases, power plants, substations, refineries, factories and condominiums
| Specification | Value |
|---|---|
| Wire diameter | 3.50 – 4.00 mm |
| Pitch | 75 (V) × 12.5 (H) mm, or 25 (V) × 75 (H) mm |
| Material | Mild steel bright hard drawn / heavy galvanised / Galfan wire |
| Coating | Hot-dip galvanised after welding (BS EN 1461:2009) or powder coated |
| Tensile strength | 550 – 770 N/mm² |
| Weld shear strength | 50 – 75% of parent material |
| Height | 900 – 6000 mm |
| Width | 2200 – 3000 mm |
| Profile | Flat panel, double wire, roll top, V-press |
| Standard | BS EN 10218-2:2012, BS EN 10223-7:2012 |
Medium security · decorative

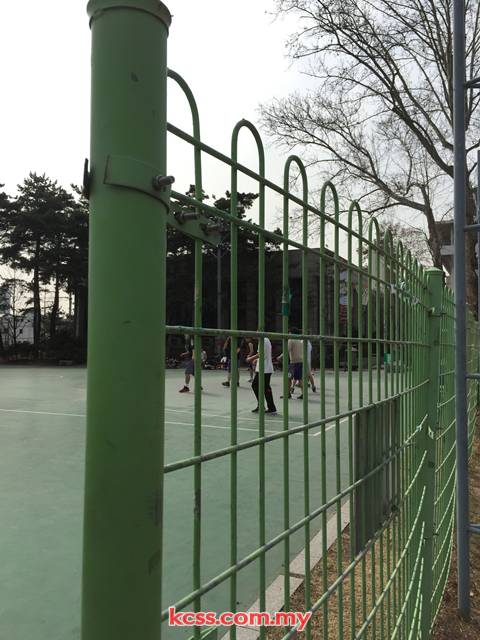

Roll Top Profile Security Fence
Rolled top and bottom edges give a clean, safe finish with no sharp ends — attractive enough for landscaped sites without losing the strength of a welded fence.
- No sharp ends at top or bottom
- Powder coated in a choice of colours, or hot-dip galvanised
- For stations, condominiums, homes, parks and recreation areas
| Specification | Value |
|---|---|
| Wire diameter | 4.00 – 8.00 mm |
| Pitch | 50 × 150, 50 × 200, 75 × 200, 75 × 300, 75 × 450 mm, etc. |
| Material | Mild steel bright hard drawn / heavy galvanised / Galfan wire |
| Coating | Hot-dip galvanised after welding (BS EN 1461:2009) or powder coated |
| Tensile strength | 550 – 770 N/mm² |
| Weld shear strength | 50 – 75% of parent material |
| Height | 900 – 3000 mm |
| Width | 2200 – 3000 mm |
| Profile | Roll top, optional V-press |
| Accessories | SHS or RHS post, U-clip, bolts & nuts, flat bar |
| Standard | BS EN 10218-2:2012, BS EN 10223-7:2012 |
